Business Process Management (BPM)

The BPM module allows documenting, modeling, and analyzing the organization's business processes. It combines visual BPMN 2.0 diagrams with maturity assessments and reporting.

Note

The BPM module can be enabled or disabled by an administrator in Settings. When disabled, BPM navigation and features are hidden.

Process Navigator

The Process Navigator organizes processes into three main categories:

• Management Processes — Planning, governance, and control
• Core Business Processes — Primary value-creating activities
• Support Processes — Activities that support core business operations

Filters: Type, Maturity (Initial / Defined / Managed / Optimized), Automation level, Risk (Low / Medium / High / Critical), Depth (L1 / L2 / L3).

Cards with a published BPMN diagram show a flow icon — click it to open the diagram full-screen without leaving the navigator (or jump from there to the full flow editor).

BPM Dashboard

The BPM Dashboard provides an executive view of process status:

Indicator	Description
Total Processes	Total number of documented business processes
Diagram Coverage	Percentage of processes with an associated BPMN diagram
High Risk	Number of processes with high risk level
Critical Risk	Number of processes with critical risk level

Charts show distribution by process type, maturity level, and automation level. A top risk processes table helps prioritize investments.

Process Flow Editor

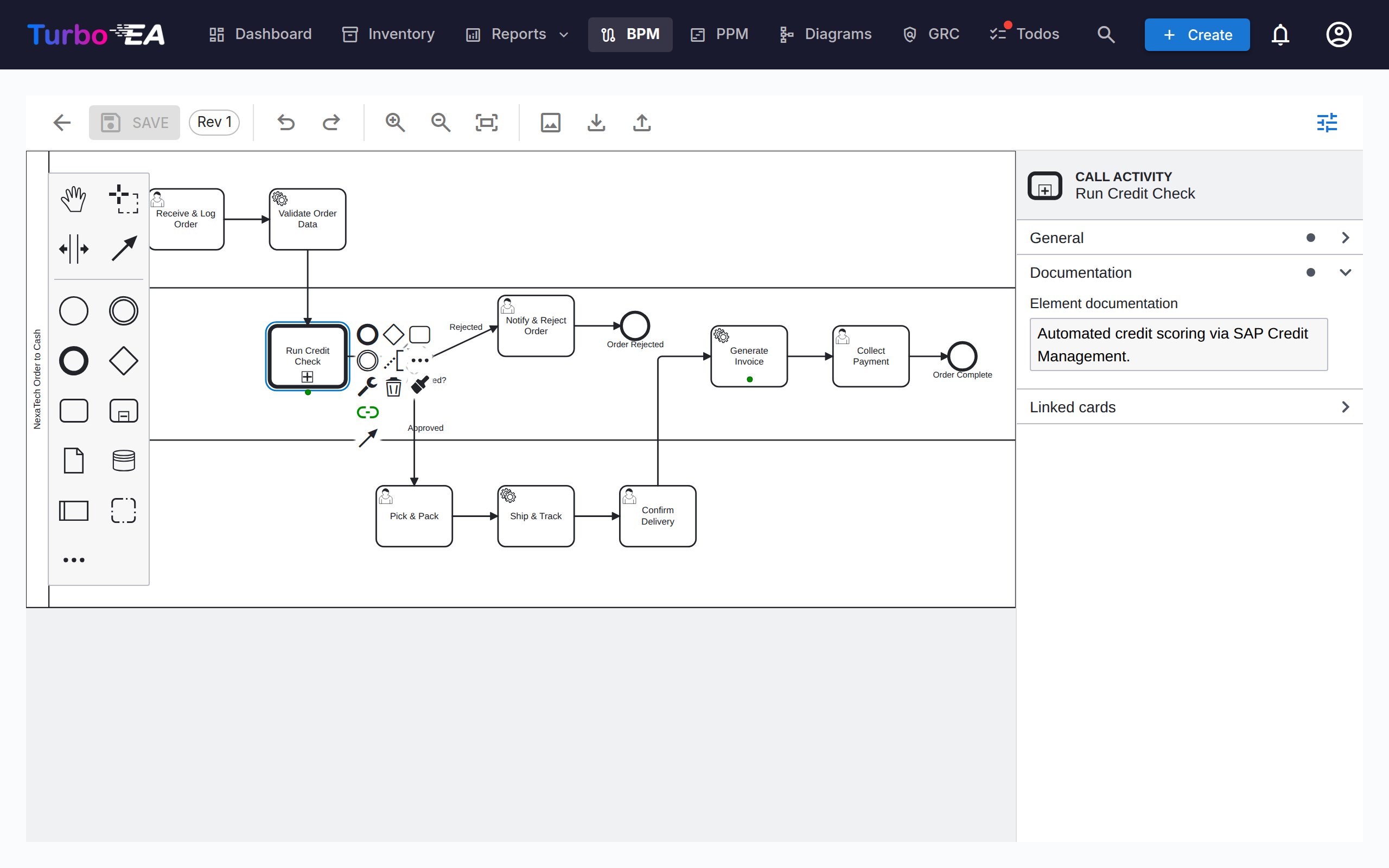

Each Business Process card can have a BPMN 2.0 process flow diagram. The editor uses bpmn-js and provides:

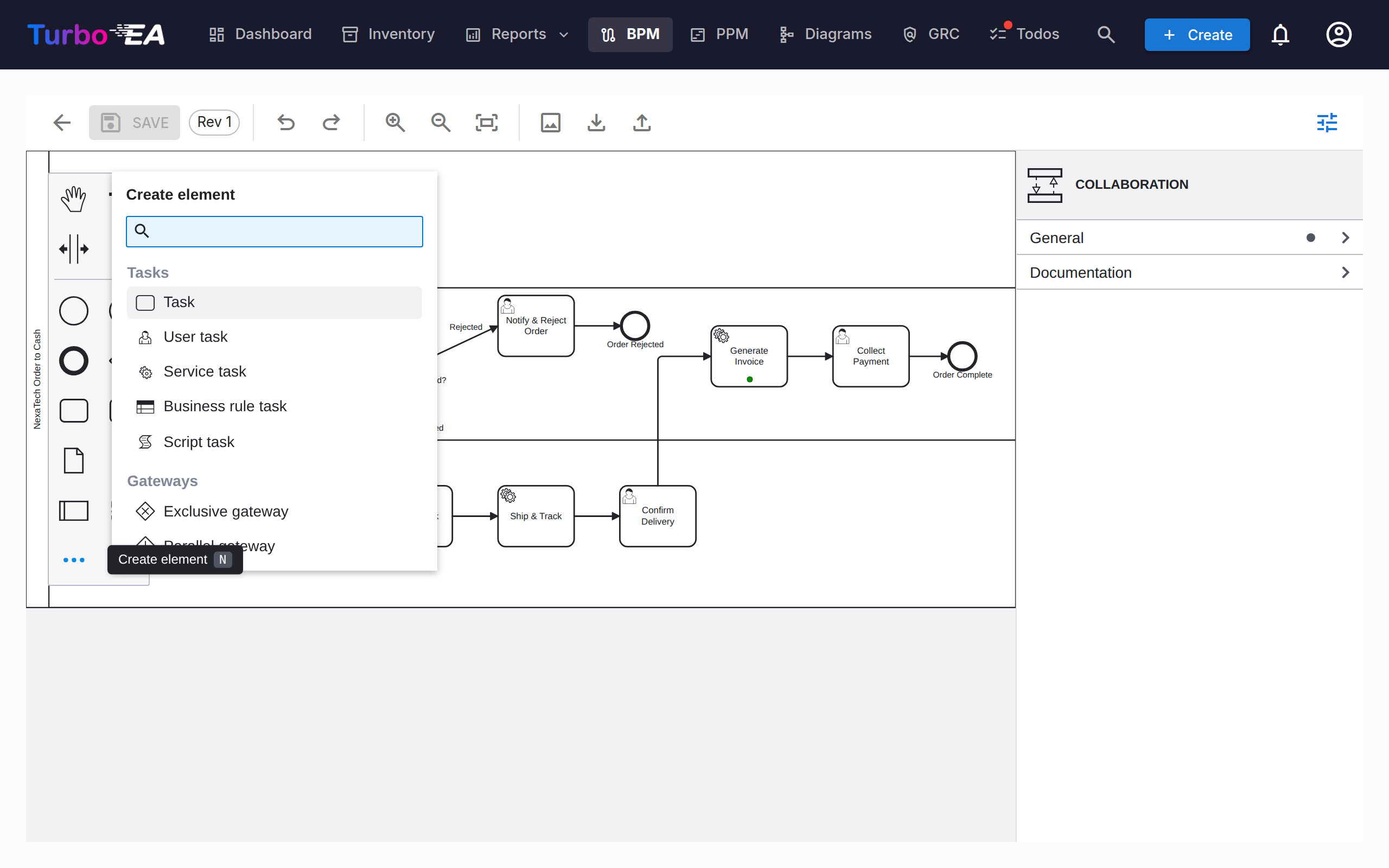

• Visual modeling — Drag and drop BPMN elements: tasks, events, gateways, lanes, and sub-processes

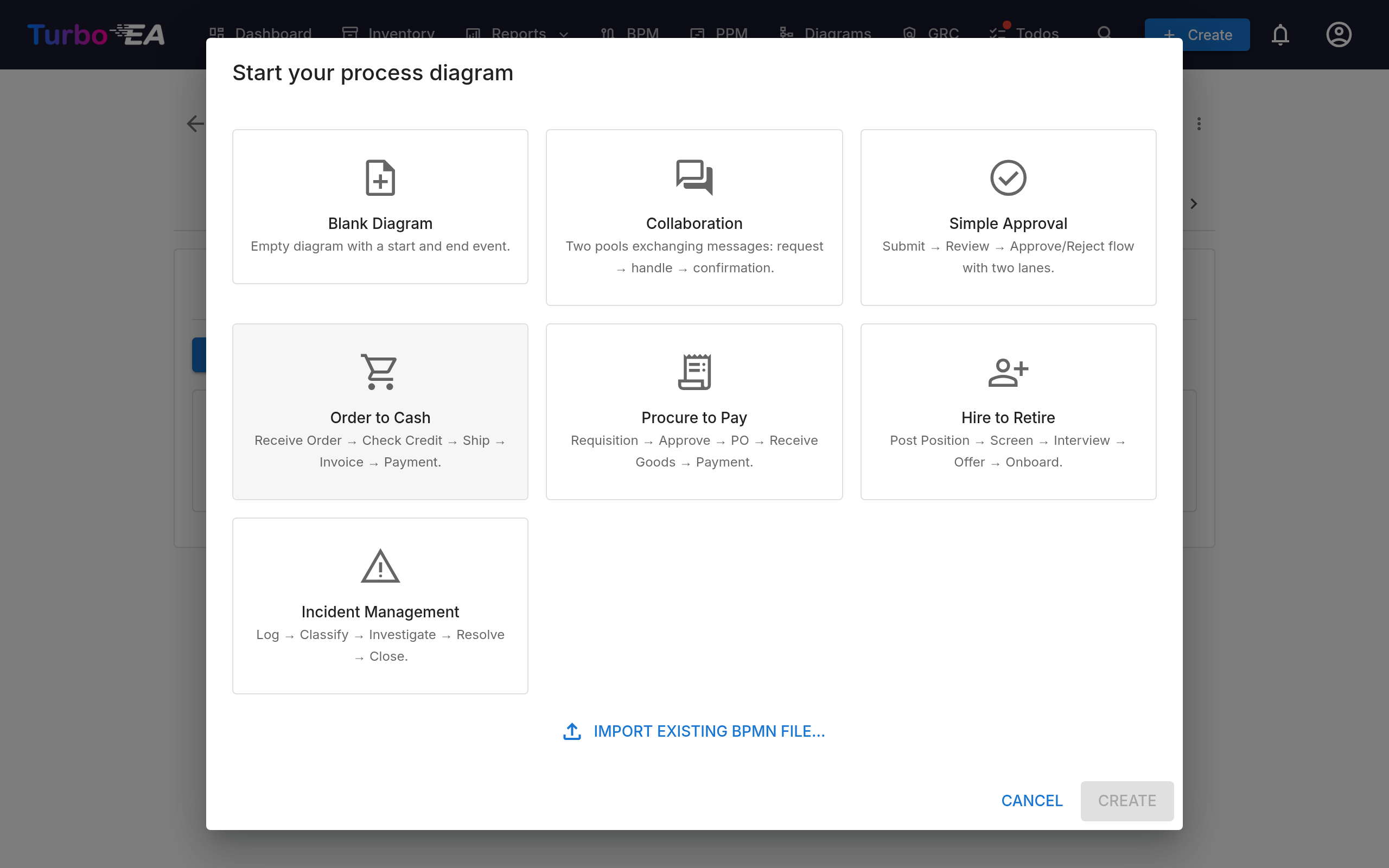

• Starter templates — Choose from 6 pre-built BPMN templates for common process patterns (or start from a blank canvas)
• Element extraction — When you save a diagram, the system automatically extracts all tasks, events, gateways, and lanes for analysis

Element Linking

BPMN elements can be linked to EA cards. For example, link a task in your process diagram to the Application that supports it. This creates a traceable connection between your process model and your architecture landscape:

• Select any task, event, or gateway in the BPMN diagram

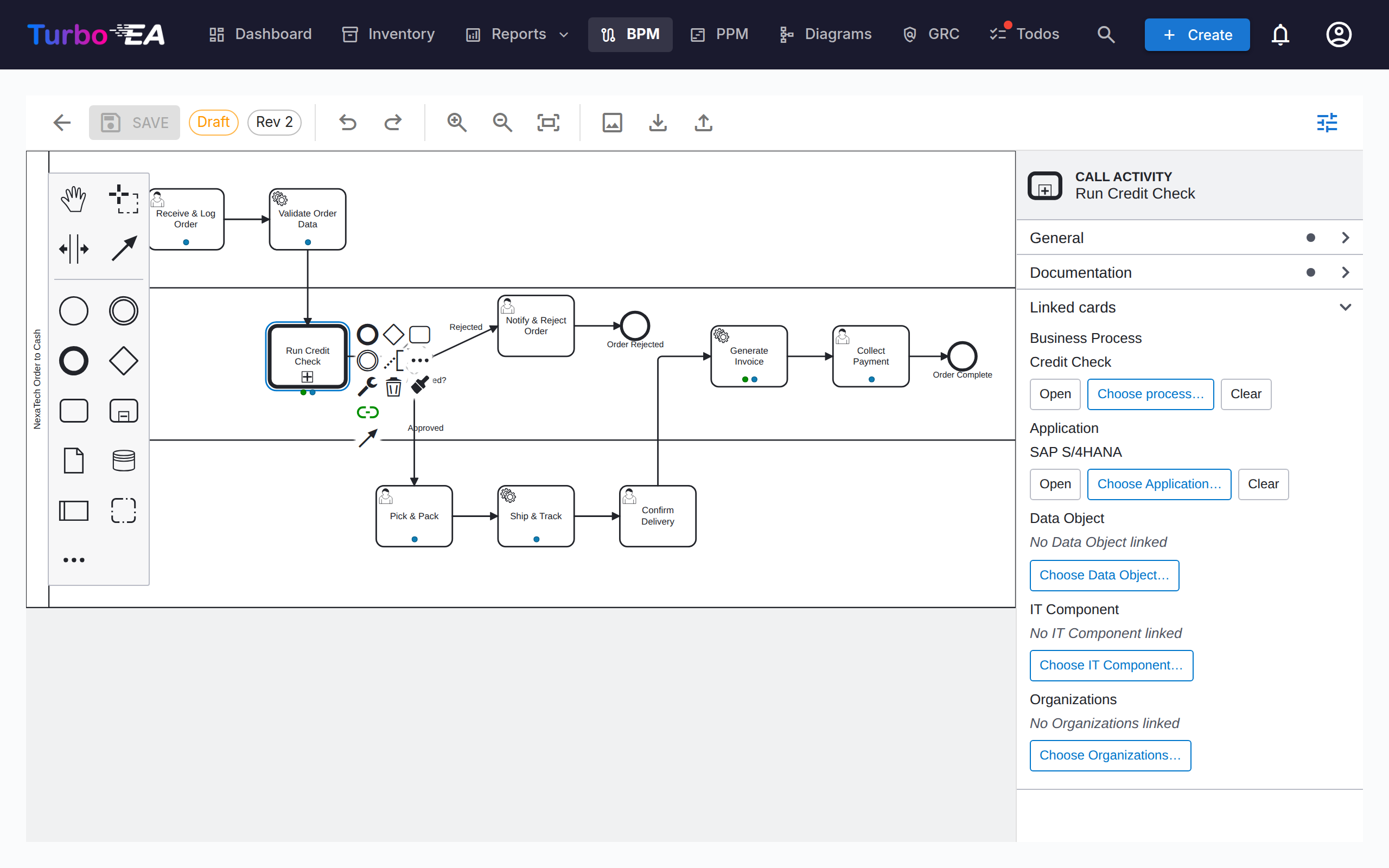

• The Element Linker panel shows matching cards (Application, Data Object, IT Component, Organization)
• Link the element to a card — the connection is stored and visible in both the process flow and the card's relations

Linking Organizations

The Organization column in the step table links steps to Organization cards, right next to Application / Data Object / IT Component. Unlike those single-value links, a step can be linked to several organizations — pick them one at a time and remove them individually. Step links are informative only — they document which organizations are involved in a step without creating any relation between the cards; Business Process ↔ Organization relations are managed separately on the card's Relations tab. Lane names remain plain free text from the diagram and are not connected to Organization cards. The Process × Organization Matrix in BPM Reports aggregates these links across all processes.

Approval Workflow

Process flow diagrams follow a version-controlled approval workflow:

Status	Description
Draft	Being edited, not yet submitted for review
Pending	Submitted for approval, awaiting review
Published	Approved and visible as the current version
Archived	Previously published version, kept for history

Submitting a draft creates a version snapshot. Approvers can approve (publish) or reject (with comments) the submission.

Process Assessments

Business Process cards support assessments that score the process on:

• Efficiency — How well the process uses resources
• Effectiveness — How well the process achieves its goals
• Compliance — How well the process meets regulatory requirements

Assessment data feeds into the BPM Reports.

BPM Reports

Three specialized reports are available from the BPM Dashboard:

• Maturity Report — Distribution of processes by maturity level, trends over time
• Risk Report — Risk assessment overview, highlighting processes that need attention
• Automation Report — Analysis of automation levels across the process landscape
• Process × Organization Matrix — Which organizations execute steps in which processes, with per-organization filtering and a per-process step drill-down (built from the informative step links; card relations are not included)
